A Premium, Specification-Grade Fencing Solution

We are pleased to present the Commercial Modular Fence System from NEWGEN MATERIALS & DESIGN, a high-performance solution engineered for comm ercial, institutional, municipal, and demanding residential applications. Built on a ro bust modular framework, the system offers considerable design flexibility-enabling solid privacy, decorative, or semi-private configurations-while ensuring structural i ntegrity and a clean, modern aesthetic.

This commercial-grade system is constructed with 6' x 6' fence panels and sturdy 8'or 9' aluminum posts, supporting fence heights of up to 8 feet above grade. It incorporates interlocking aluminum rails and wood-plastic composite (WPC) boards for enhanced durability and minimal maintenance.All our products are backed by internationally recognized certifications, including SGS, CE, ISO, Intertek, and FSC, affirming our commitment to quality, safety, and sustainability.

-51%
Angled view of a mahogany composite privacy fence panel with horizontal wood-grain boards and black frame
Front view of the 4 ft. high by 6 ft. wide mahogany composite privacy fence panel between black posts
-47%
Angled view of a walnut composite privacy fence panel with horizontal boards and a black frame
Dimension diagram of the walnut composite privacy fence panel showing 6 ft. width and 4 ft. height
-51%

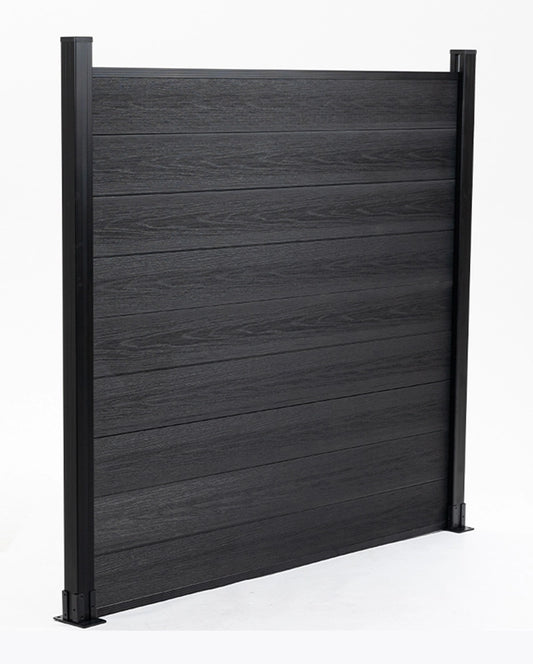

Angled view of the black composite privacy fence panel with horizontal wood-grain boards and side posts
Dimension diagram of the black composite privacy fence panel showing 6 ft. width and 4 ft. height
-51%
Angled view of a 4 ft. H x 6 ft. W light gray composite privacy fence panel with horizontal boards and black frame
Light gray composite privacy fence panel diagram showing 6 ft. width and 4 ft. height
-49%
Angled view of a mahogany composite co-extrusion fence panel with horizontal boards and black posts
Front view of a mahogany composite fence panel framed by two black posts
-45%
Composite Fence Co-Extrusion Wholesale Price  -Walnut
Co-extruded walnut composite fence boards at wholesale pricing
-49%
Black composite fence panel with posts, featuring co-extrusion technology for luxury outdoor fencing.
Wholesale black co-extruded composite fence boards discounted
-49%

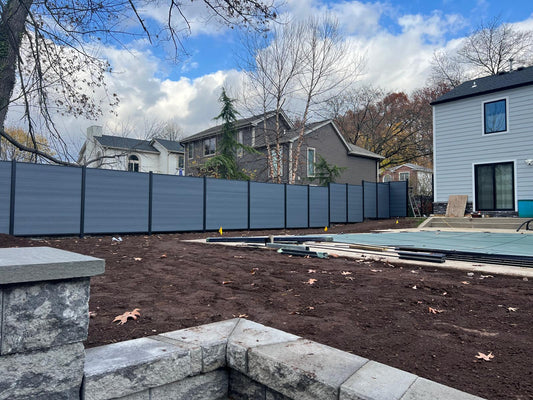

Light gray composite fence panel
Discounted composite fence price
Co-extrusion WPC fence board
Weather-resistant composite fencing
Composite Fence Gray, Wholesale Price
-49%
Mahogany composite privacy fence panel with horizontal lattice top and black posts, angled view
Front view of mahogany composite privacy fence with a horizontal lattice top and black frame
-45%
6x6 ft walnut lattice top composite privacy fence panel for modern backyard
walnut 6x6 ft composite fence with lattice top for outdoor privacy and airflow
-49%

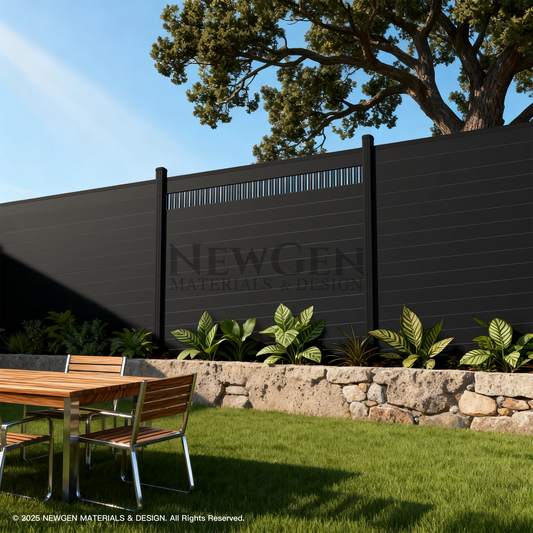

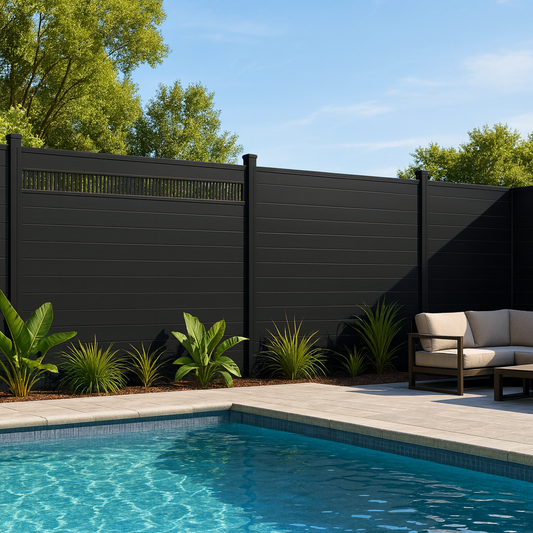

Black lattice top composite privacy fence panel for modern backyard design
6 ft black composite fence with lattice top for privacy and airflow
-49%
Light gray composite privacy fence panel with horizontal lattice top and dark posts
Front view of 6 ft by 6 ft light gray composite privacy fence with lattice top
-49%
Angled view of mahogany center trim composite fence with wood-grain boards and black frame
Front view of mahogany composite fence panel with black posts and center trim
-45%
Angled view of walnut composite fence panel with black posts and center trim
Front view of walnut center trim composite fence panel with horizontal boards and black frame
-49%
Angled view of a black Center Trim composite fence panel with horizontal boards and two posts
Front view of a black Center Trim composite fence panel with wood-grain horizontal boards
-49%
Angled view of a light gray composite fence panel with dark posts and horizontal center trim
Front view of a light gray center-trim composite fence panel framed by dark posts
-49%
Angled view of a mahogany composite fence panel with a single horizontal divider and black posts
Front view of a single-divider mahogany composite fence panel framed by black posts
-45%
Angled view of walnut single-divider composite fence panel with horizontal boards and black frame
Front view of walnut composite fence panel with a single horizontal divider and black posts
-49%
Black single divider composite fence panel with horizontal wood-grain boards and two posts, angled view
Front view of black single divider composite fence panel with a narrow horizontal opening
-49%
Angled view of a light gray single divider composite fence panel with dark posts and horizontal slats
Front view of a light gray single divider composite fence panel framed by dark metal posts

Unmatched Durability

NewGen Composite Fence withstands Winds up to 100 MPH!

Test Report Including All Parameters

Wind Speed Duration Maximum Deflection (inches)
1 2 3 4 5 6 7 8 9
80 mph 45 sec 0.65 0.31 0.03 1.53 1.31 0.20 0.61 0.28 0.02
0 mph Permanent Set 0.11 0.08 0.01 0.19 0.20 0.04 0.08 0.07 <0.01
90 mph 40 sec 0.75 0.36 0.04 1.76 1.47 0.24 0.72 0.32 0.03
0 mph Permanent Set 0.14 0.12 0.02 0.30 0.18 0.03 0.13 0.11 0.01
100 mph 36 sec Specimen sustained maximum wind load of 100 mph
0 mph Permanent Set and no damage was observed after test.1
110 mph 33 sec Specimen sustained maximum wind load of 110 mph
0 mph Permanent Set and no damage was observed after test.1
  • Exceptional Wind Resistance: Withstands winds up to 100 miles per hour.
  • Low Maintenance: Enjoy a beautiful fence without the hassle of frequent upkeep.
  • Wholesale Pricing: Competitive rates for bulk purchases.
  • Top Composite Fence Distributor: Trusted source for high-quality fencing solutions.
-42%

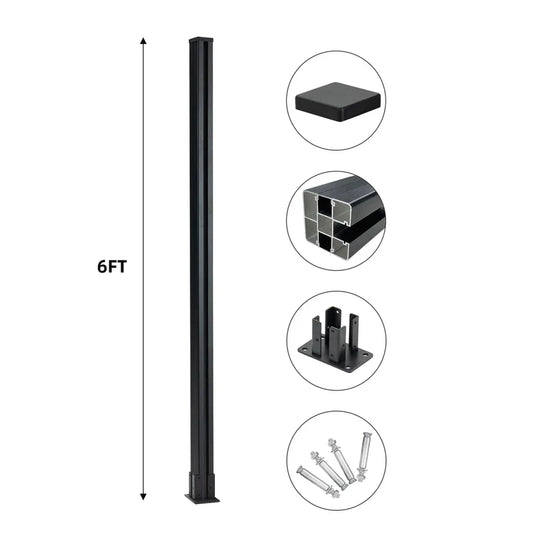

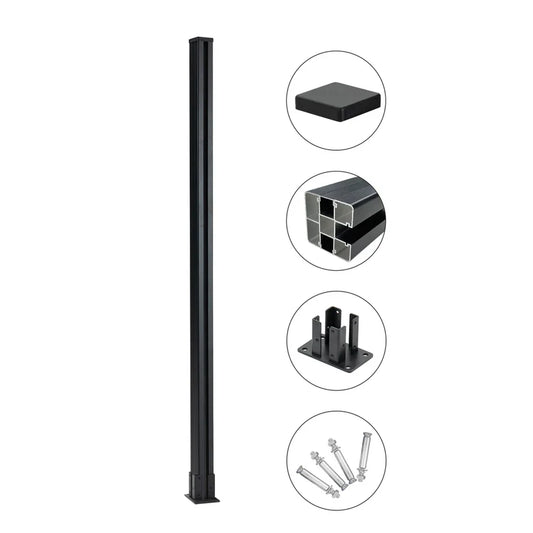

6 ft above-ground fence post with height measurement and included mounting components
Black 6 ft above-ground fence post with cap, mounting base, and hardware details
-48%
In-ground fence post dimension diagram labeled 8 ft tall, 6 ft above ground, 2 ft below ground, and 2.95 in wide

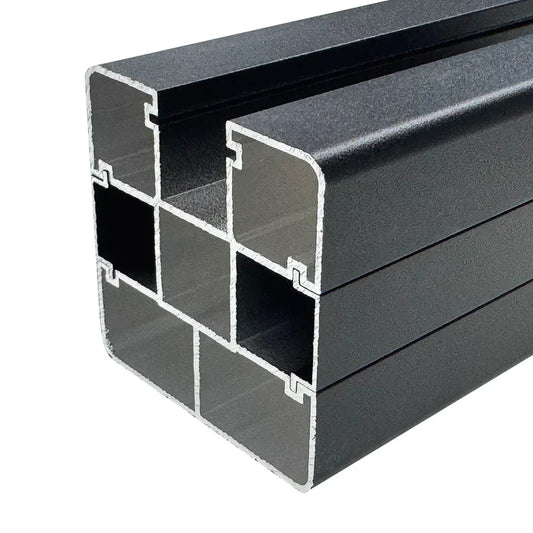

Close-up of the dark hollow multi-channel profile of the 9 ft in-ground fence post
-38%
In-ground fence post dimension diagram labeled 8 ft tall, 6 ft above ground, 2 ft below ground, and 2.95 in wide
Close-up of the dark hollow multi-channel profile of the 9 ft in-ground fence post
-20%
Black 10 ft in-ground fence post shown from two sides with 2.95-inch width and hollow cross-section detail
Black 10 ft in-ground fence post with 2.95-inch width, 0.09-inch wall profile, and post cap detail
-28%

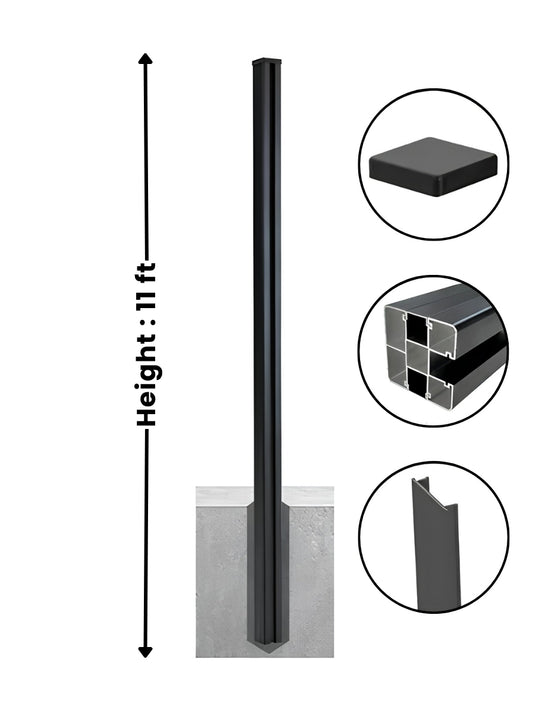

11 ft black aluminum alloy fence post diagram showing 2.95-inch width, post cap, hollow cross-section, and channel detail

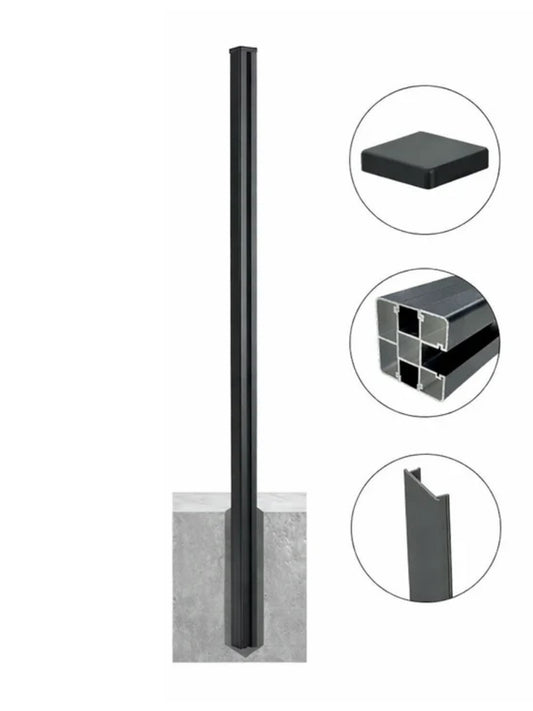

Extra-long aluminum alloy fence post in dark finish with cap and cross-section detail views
-43%
Black fence post base mounting bracket with four upright supports and corner bolt holes
Black fence post base mounting bracket installed around posts with silver mounting bolts
-36%

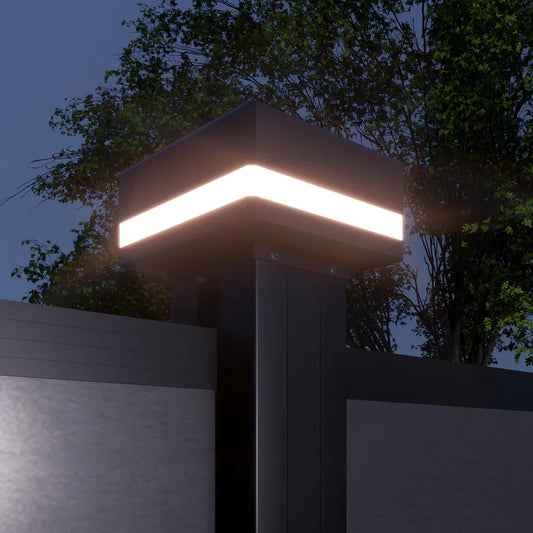

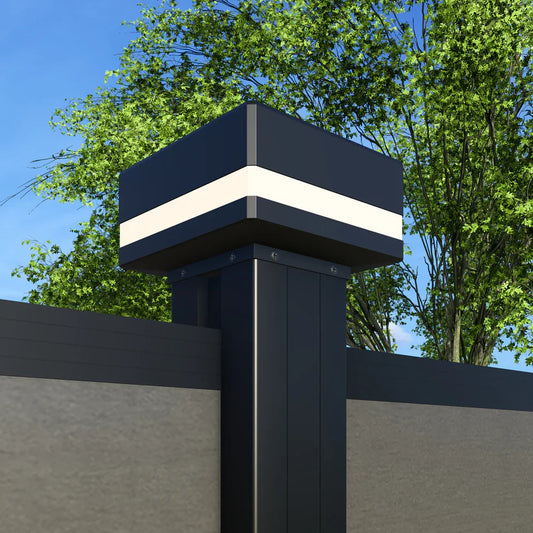

LED Cap for Composite Fence Post
LED cap composite fence post
Solar post cap light
Outdoor fence post LED light
Easy install LED fence cap
Waterproof LED post cap
-55%

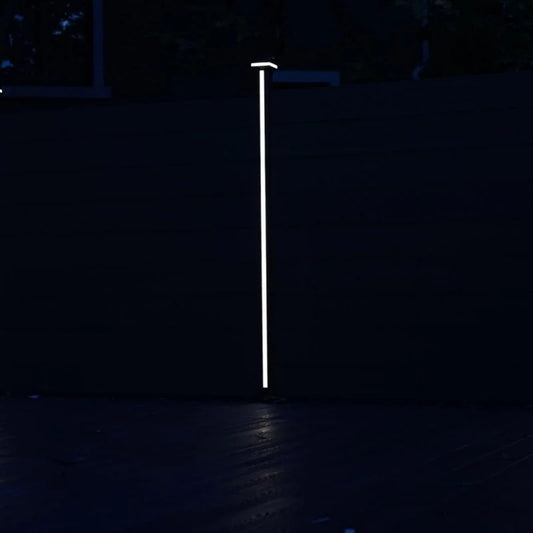

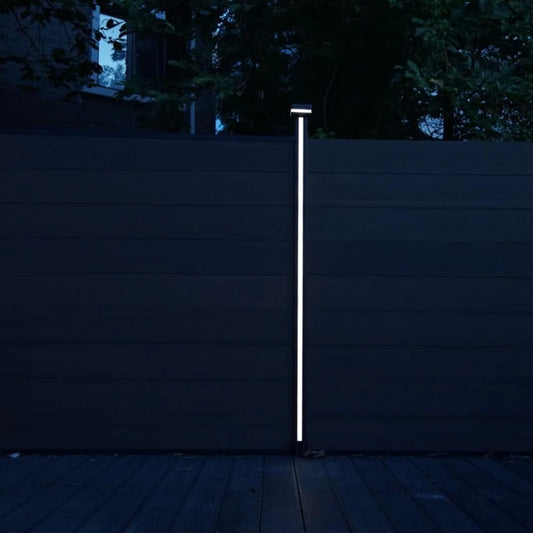

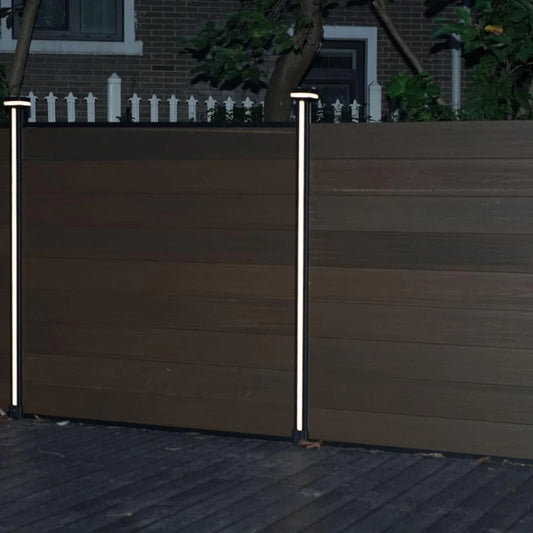

LED strip composite fence post
Fence post LED lighting
Easy install LED strip fence
Outdoor LED strip light post
Decorative composite fence lights
LED strip composite fence post
Fence post LED lighting
Easy install LED strip fence
Outdoor LED strip light post
Decorative composite fence lights
-50%

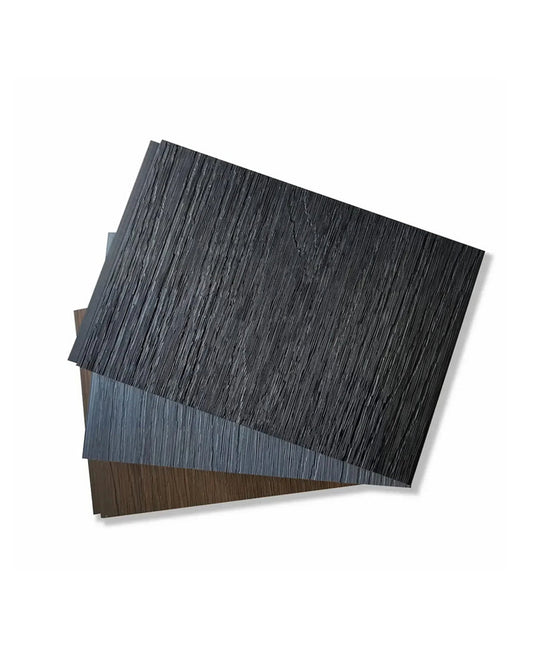

Composite Fence Replacement Boards
$60.00
$120.00
Walnut
Black
Light Gray
-63%
Set of three brown top lattice privacy composite fence replacement boards with wood-grain finish
Set of three black top lattice privacy composite fence replacement boards with subtle wood-grain texture
$45.00
$120.00
Walnut
Black
Light Gray
-23%
Aluminum corner detail modular raised garden bed
Expandable modular raised garden bed for outdoor gardening

Key Benefits

  • SystemType: Modular Horizontal Privacy Fence System
  • Components: Composite WPC Boards + Chambered Aluminum Posts + Interlocking Aluminum Rails
  • Posts: 3" × 3" (75 mm × 75mm) | Wall Thickness:14 gauge (≈1.9mm) | Length:8 ft

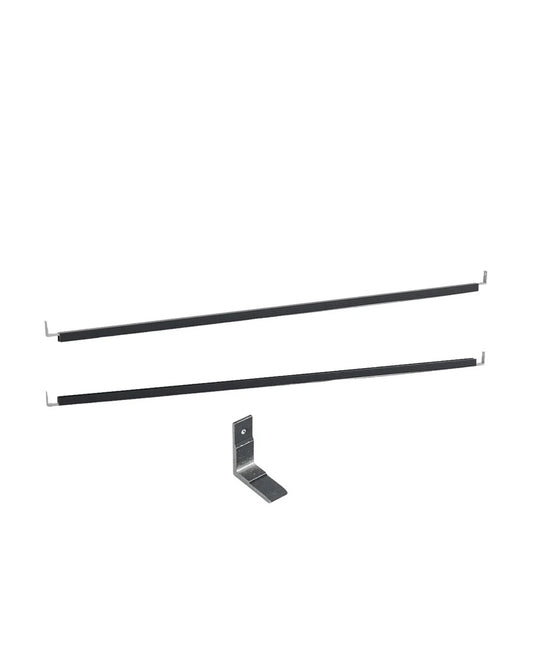

  • Rails: Precision-engineered, non-chambered
    aluminum rails featuring an integrated tongueand-groove system for a seamless and rigid board
    interlock
  • Boards: 71" L x 7.3" W (1800 mm x 185 mm) composite infill
  • FenceHeight: 6 ft above grade with a 2-3 ft in-ground embedment for stability
  • Nominal Post Spacing:71" center-to-center (180 cm)
  • Applications: Commercial, Institutional, Municipal, Multi-Family Residential

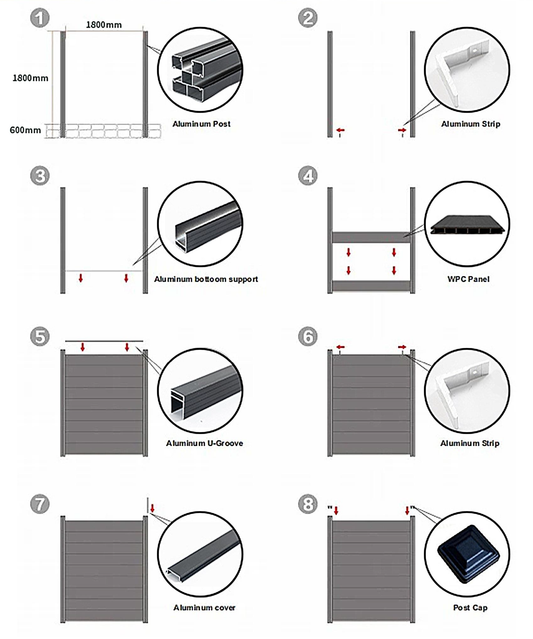

How to Install Composite Fence

Installation Steps:

1.Mark Post Locations: Mark post locations spaced 70.87
inches on-center.
2.DigHoles: Excavate holes to a depth of 23.62 inches with a 5.9-inch diameter.
3.Post Setting: Place posts in holes and anchor with concrete. Verify posts are plumb
and aligned.
4.Framework and Infill: Secure horizontal rails to posts. Install composite boards to
complete the assembly.


Tip: Before installing the tracks and planks, ensure the concrete is fully cured for maximum
stability and ease of installation.

Frequently Asked Questions

What is a composite fence?
What warranty do your products come with?
Is composite fencing low maintenance? How do I clean it?
Will the color fade over time?
How does the cost compare to wood or vinyl?
Is composite fencing good for privacy and wind?
Can I DIY install a composite fence? What posts/footings do I need?
